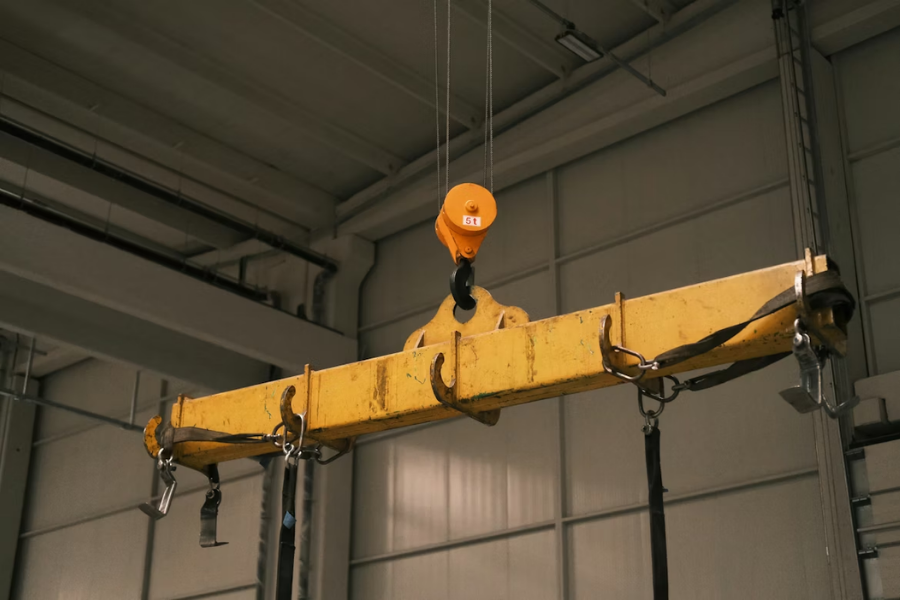

The Hidden Risk in Lifting Beams and Lug Design
In heavy lifting operations, failure does not start with the main structure. It starts at the smallest connection point. A single lifting lug carries enormous responsibility, transferring tonnes of load through a relatively small component. When lifting beams and their associated connection points are overlooked or inadequately designed, the consequences can be catastrophic.
Lifting beams and lugs are frequently treated as secondary considerations in structural design. However, these components represent the most critical failure points in any lifting operation. While the primary structure may be robust and fully compliant, a poorly designed lug or inadequately specified beam can compromise the entire lift.
Consider a recent project where Yenem Engineering verified a 20-tonne transport frame for Interforge. The lifting beams utilised HN2001005.5*8 sections with Q235/EQ grade steel for the main frame, while Q355 grade steel was specifically selected for the lifting lugs. This material differentiation was not arbitrary. It reflected the higher stress concentrations that lugs experience during lifting operations.
The design criteria applied a dynamic factor of 1.2 for the lifting beams and frame design, but increased this to 1.35 for the lugs. This higher factor acknowledges the critical nature of these connection points and the localised stresses they must withstand.
Load Path Engineering: From Structure to Crane
Understanding load paths is fundamental to lifting beams design. Forces must transfer seamlessly from the structure being lifted, through the lifting lugs, into the lifting beams, and ultimately to the crane hook. Each transition point in this chain represents a potential weakness if not precisely engineered.
When forces travel through lifting beams and lugs, they do not distribute evenly. Stress concentrations develop at geometric discontinuities, weld toes, and pin holes. The 20-tonne transport frame verified by Yenem demonstrated this principle clearly. With a Safe Working Load of 22 tonnes applied across a frame measuring 11.8 metres by 2.05 metres, the load distribution through each lug required careful analysis.
Using SPACE GASS structural modelling software, every member of the lifting beams assembly was designed for both strength and serviceability requirements. This computational approach ensures that load paths are thoroughly understood and that no component operates beyond its design capacity.
Stress Concentration: Where Lifting Beams Fail
Poor lug design creates localised stress concentrations that can initiate failure even when the overall lifting beam structure appears sound. These stress risers typically occur at sharp corners, inadequate fillet radii, and undersized pin holes. The result is often a sudden, brittle failure with little warning.
The verification of lifting beams must account for multiple load cases. It’s not enough to design for a single lift scenario. Engineers need to consider variations such as uneven load distribution, dynamic lifting forces, and potential side loading during crane operation. Each of these conditions places different stresses on the lifting beams and their connection points.
Without properly analysing these load cases, critical stress points can be overlooked, increasing the risk of failure under real-world conditions.
Custom Design: Beyond Rules of Thumb
There is no acceptable “rule of thumb” when engineering lifting beams and lugs. Each lifting point must be individually assessed based on the specific load case, geometry, and lifting method employed. Assumptions that may have proven adequate in one application can prove dangerously inadequate in another.
Yenem’s approach to lifting beams design ensures every connection point is engineered, verified, and compliant with relevant codes. Third-party design verification, eliminates weak links in the lifting chain by applying rigorous analytical methods to every component.
